How to Recover Data From Water Damaged Hard Drive?

Yes, in many cases you can recover data from a water damaged hard drive but you need to act fast and get professional help.

The problem with water damage is that it harms several parts of the drive at once.

It shorts out the circuit board, corrodes electronic parts, and contaminates the inside of the drive. It can also damage the pre-amplifier chip that reads data from the platters.

⚠️ Important: In case this happens, the biggest mistake you can make is turning the drive on while it is still wet. This alone can destroy chips or crash the read heads into the platter surface.

• Professional water damaged hard drive recovery is a highly specialized process. The key steps we adopt for this are opening the drive in a cleanroom, cleaning internal parts, replacing damaged hardware, and creating a full disk image.
• Because this nature of damage is physical, regular software tools will not work; you need specialist data recovery services to recover data from a water damaged hard drive.

इस पोस्ट को हिंदी में पढ़ने के लिए यहां क्लिक करें।

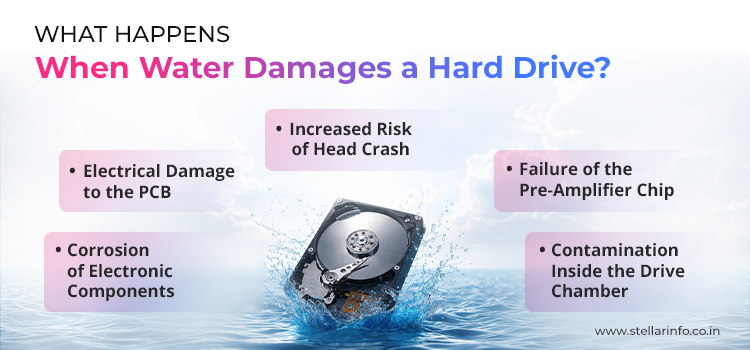

What Happens When Water Damages a Hard Drive?

Water rarely damages just one part of a hard drive. Instead, it triggers a chain of failures across multiple subsystems.

⚡ Electrical Damage to the PCB: The printed circuit board (PCB) of your HDD controls nearly everything the drive does, from spinning the platters to positioning the read heads. When water reaches the PCB, it creates unwanted connections between circuits. If your drive has stopped responding due to a short circuit, this guide on how to recover data from an electrically damaged hard drive can help you understand the next steps. This can burn out voltage regulators, controller chips, and motor drivers.

🧪 Corrosion of Electronic Components: Even when a drive looks dry on the outside, unknown to you the moisture can remain trapped inside connectors and circuits. This hidden moisture will almost certainly corrode copper traces, solder joints, and internal connectors. So, a drive may appear to work for a short time after drying, only to fail weeks later as corrosion spreads.

🎛️ Failure of the Pre-Amplifier Chip: The pre-amplifier chip sits on the head assembly inside the drive. Its job is to boost the very faint signals picked up from the platter surface. It is one of the parts most easily damaged by moisture. When it fails, the drive can no longer read any data even though the data itself is still stored on the platters.

💧 Contamination Inside the Drive Chamber: Most hard drives have a small breather hole that helps balance air pressure inside the casing. Liquid can get past the filter on this hole and leave behind silt, minerals, or salt deposits directly on the platter surface.

⚠️ Increased Risk of Head Crash: The read/write heads float just nanometers above the spinning platters. When contaminants from water exposure settle on the surface, the heads can strike the debris. This scratches the platter, spreads metal particles through the drive, and causes damage that gets worse very quickly.

All of these risks together are why recovering data from a water damaged hard drive requires professional tools, Cleanroom conditions, and careful imaging methods rather than data recovery software.

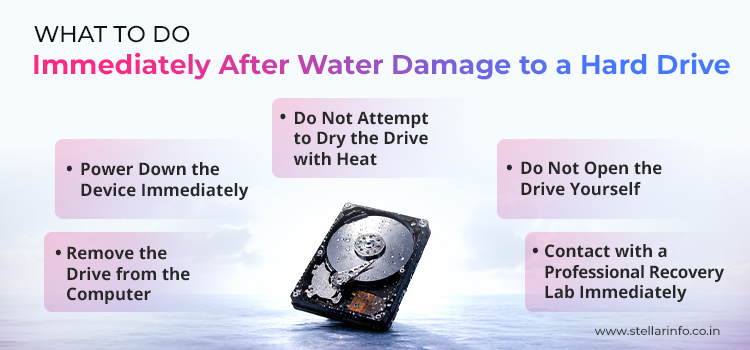

What to Do Immediately After Water Damage to a Hard Drive?

The actions you take in the first few minutes after water exposure can determine whether your data is recoverable.

🔌 Power Down the Device Immediately: A wet drive that continues running faces a high risk of electrical short circuits and head crashes. So, the first response should be to disconnect all power sources, remove laptop batteries, and unplug external drives.

💻 Remove the Drive from the Computer: This helps prevent any accidental power delivery from an automated restart or recovering power supply.

🔥 Do Not Attempt to Dry the Drive with Heat: Hair dryers and ovens can warp internal components. Do not place the drive in rice; it cannot prevent internal corrosion and may introduce particles into the device. If your device was exposed during heavy rain or damp weather, learning how to protect your storage devices during the monsoon can help prevent similar damage in the future.

🛑 Do Not Open the Drive Yourself: Exposing the platters outside a cleanroom introduces airborne contaminants thousands of times larger than the head clearance gap.

📞 Contact a Professional Recovery Lab Immediately: Corrosion begins the moment water enters the drive and worsens with every passing day. A specialist offering data recovery services can begin stabilization procedures before the damage becomes irreversible.

How Do Experts Recover Data from Water Damaged HDDs?

Professional water damaged hard drive recovery is a careful, step-by-step workflow designed to prevent further damage while restoring the drive’s ability to be read. These are the steps we take at Stellar.

Step 1 — Initial Diagnostic Evaluation

Every hard disk data recovery case has to start with a thorough inspection. Our engineers check how far the water spread, whether corrosion has begun, if the circuit board still works, and whether contaminants have entered the drive chamber.

In water damaged HDD cases, our technicians usually find several problems at once, such as a failed PCB alongside damaged heads or internal contamination. Finding all the issues first is essential before attempting anything else.

Step 2 — Cleanroom Disassembly

If there is any sign of internal damage, the drive has to be opened inside an ISO Class-100 Cleanroom. We take this precaution because opening it in a normal room would expose the platters to dust particles large enough to damage the surface instantly.

Inside the cleanroom, engineers take the drive apart and check the platters for residue, inspect the read/write heads, examine the actuator assembly, and look at the internal airflow paths. This tells them whether the drive needs cleaning, new heads, or other mechanical repairs.

Step 3 — Internal Decontamination

If water or debris made it inside the drive, the platters are cleaned before the drive can safely spin again. This step requires extreme care because even a tiny scratch on the magnetic layer can permanently destroy the data stored beneath it.

Our technicians use chemical solutions to break down mineral deposits. Then, they carefully remove salt crystals and residue with lint-free materials, and follow controlled drying steps to clear any remaining moisture.

Step 4 — Hardware Component Replacement

Water damages the head stack assembly beyond saving. When the pre-amplifier chip or read/write heads stop working, the full assembly has to be swapped out using parts from a compatible donor drive.

Choosing the right donor is not as simple as matching the model number. Our engineers do their best to match the firmware family, manufacturing batch, head layout, and microcode.

Even small differences can stop the drive from starting up. This is one reason professional hard drive recovery requires large parts inventories and specialist knowledge.

Step 5 — PCB Repair and Firmware Transfer

If the circuit board has been damaged by water, it needs to be replaced. But modern drives store unique calibration data on chips built into the PCB. So, if our engineers simply swap the board without transferring this data, the drive will stop working altogether.

To get around this, our engineers move the firmware chip from the original board to the replacement. Then they rebuild missing firmware data with specialist tools, and adjust settings so the electronics can communicate properly with the platters again.

Step 6 — Sector-by-Sector Disk Imaging

Instead of copying files straight from the drive, we first create a complete image of every sector on the disk using dedicated hard disk data recovery hardware. These tools read weak sectors carefully, skip badly damaged areas and return to them later, adjust read settings on the fly, and reduce stress on the drive’s moving parts.

This step matters because a water damaged drive may only keep running for a short time. Imaging captures as much raw data as possible before the hardware fails further. Once the image is done, the physical drive is set aside and the engineers do all the remaining work happens on the copy.

Step 7 — Logical Data Reconstruction

With the full disk image in hand, technicians rebuild the file system, including partition tables, folder structures, metadata, and file allocation records. Where parts of the disk could not be read, manual reconstruction helps piece together incomplete files. Then we transfer the recovered data to a new storage device and return it to the client.

At Stellar, we understand that when someone reaches out to us with a water damaged hard drive, they are very anxious about their data. Trust us to take every technical precaution and adopt every forensic technique possible to recover your important data. Contact a Stellar data recovery expert today for a free consultation and we will guide you on the next steps.

Professional Water Damaged Hard Drive Recovery Services Across India

If your hard drive has been exposed to water, moisture, rain, or liquid spills, professional help is often the safest way to recover your data. Stellar offers expert water damaged hard drive recovery services across India for physically damaged, non-detecting, or short-circuited hard drives.

Our Services Are Available in Major Cities Including:

Hard Drive Recovery in Delhi, Hard Drive Recovery in Mumbai, Hard Drive Recovery in Kolkata, Hard Drive Recovery in Chennai, Hard Drive Recovery in Bengaluru, and Hard Drive Recovery in Hyderabad

We Also Assist Customers in Cities Such As:

Hard Drive Recovery in Pune, Hard Drive Recovery in Ahmedabad, Hard Drive Recovery in Gurugram, Hard Drive Recovery in Noida, Hard Drive Recovery in Chandigarh, Hard Drive Recovery in Coimbatore, Hard Drive Recovery in Kochi, and Hard Drive Recovery in Vashi

Frequently Asked Questions

1. Can a water damaged hard drive be recovered?

Yes. In many cases, it is possible to recover data from a water damaged hard drive as long as the magnetic platters remain physically intact. At Stellar, we use specialized imaging tools, cleanroom procedures, and hardware repair techniques to extract stored data.

2. Is a hard drive ruined if it gets wet?

Not necessarily. Water damages the electronics and internal mechanics, but the data on the platters can still be recoverable.

3. Can data from a damaged hard disk be recovered?

Yes. Professional hard disk data recovery specialists at Stellar use cleanroom environments, donor components, and advanced imaging equipment to read platters and recover data from physically damaged drives.

4. How much does it cost to recover data from a water damaged hard drive?

Data Recovery Costs depend on damage severity. Logical failures are less expensive to resolve, while physical damage from water exposure requires cleanroom repairs and component replacement, which increases the overall cost.

5. Should I try to dry a wet hard drive myself?

No. Using heat or rice can accelerate corrosion and introduce debris into the drive. Keep the device powered off and contact Stellar for professional evaluation.
