How To Recover Data From Logically Damaged Hard Drive?

What Is Logical Hard Drive Damage?

• Logical hard drive damage occurs when the internal data structures that help the operating system access files become corrupted or unreadable.
• Your hard drive maintains logical structures—similar to an index; that tell the operating system where each file is stored, its size, name, and folder location.

Key components of this structure include:

• The partition table (defines where each volume begins and ends)
• The boot sector (contains essential file system information)
• The Master File Table (MFT) in NTFS drives
• Allocation records that map sectors to files

When any of these structures are damaged, the operating system can no longer read or locate the data on the disk.

Conclusion:
Even though your files—such as photos, documents, and databases—may still physically exist on the drive, the system cannot access them because the “index” is broken. This inability to locate data is what defines logical hard drive failure.

What Are The Common Symptoms of Logical Hard Drive Failure?

Logical hard drive failure can show up in several ways.

1. The drive may appear as RAW in your operating system, or you may be prompted to format it before use.
2. Partitions can disappear entirely, showing as unallocated space in disk management.
3. Files and folders may display garbled names, fail to open, or vanish without explanation.
4. The system may become unusually slow when accessing the drive, or freeze when you try to open directories.
5. In some cases, the drive is detected but reports the wrong capacity or an incorrect model name.

If you notice any of these signs, stop using the drive immediately to protect recoverable data.

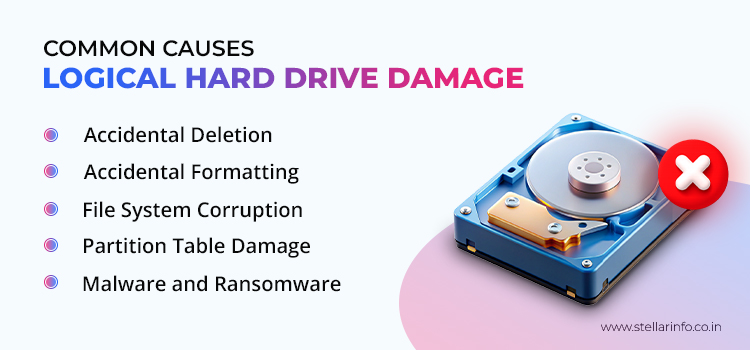

What Are The Common Causes of Logical Hard Drive Damage?

Logical corruption doesn’t come out of nowhere. There’s almost always a trigger, and these are the most common ones:

1. Accidental deletion

• When you delete a file, the system just removes the reference to it and marks that space as available. The actual data stays put until something else overwrites it.
• That’s why we say that continued use of the drive raises the risk of overwriting what you’re trying to save.

2. Accidental formatting

• Many of the logical damage cases that come to our labs are a consequence of ‘a quick format’.
• Thankfully, when you quick format your HDD, it lays down a fresh file system but doesn’t necessarily wipe every sector. The old data can still be recoverable through file system analysis or signature-based scanning.
• A full format is more destructive and may overwrite large portions of the disk, so the type of format matters enormously when you’re trying to recover data from a logically damaged hard drive.

3. File system corruption

• This is probably the biggest cause of logical hard drive failure. It can happen after a sudden power cut during a write operation, an improper shutdown, an OS crash, a failed update, or pulling a drive out without safely ejecting it.
• If the hard drive system was mid-way through updating the Master File Table when power dropped, for example, the metadata can end up in an inconsistent state, and the OS simply won’t know how to read the disk any more.

4. Partition table damage

• This type of damage can make an entire volume disappear. If the partition table gets overwritten or corrupted, the system no longer knows where the volume starts or ends. So, your drive will be in a situation where the partition may still physically exist, but the instructions needed to mount it are gone.

5. Malware and ransomware

• Malware can modify boot records, corrupting directories, encrypting files, or renaming extensions. Ransomware is particularly harsh because the drive works fine mechanically; it’s the contents that gets locked away.

How Do Experts Recover Data From a Logically Damaged Hard Drive?

Professional recovery follows a set process to recover data from logically damaged hard drives.

1. Diagnosis

The first task in any serious hard drive recovery case is to work out whether the problem is purely logical or whether there are physical issues underneath, such as weak read heads, failing sectors, or firmware instability.

2. Drive imaging

Once the drive is confirmed as stable enough to work with, the next step is creating a sector-by-sector image. This is one of the most important stages in corrupted hard drive recovery. Rather than working directly on the original drive, specialists clone its contents to a separate storage device or image file. That protects the source from further wear and gives them a safe copy to analyse.

3. Analysis and Reconstruction

What happens after imaging depends on the type of corruption.

• If the partition table is damaged, specialists scan the disk for lost partition boundaries and rebuild the missing records.
• If the file system itself is damaged, they examine metadata such as the NTFS Master File Table, directory indexes, and allocation records to piece the original file and folder layout back together.
• When the metadata is too badly damaged for that approach, they move to file carving.
• File carving can recover data even when filenames, folder paths, and directory relationships have been lost entirely.

When to Contact Professional Data Recovery Services

There are clear warning signs that it is time to stop experimenting and speak to a professional data recovery service.

1. RAW drive

If the drive shows as RAW or asks to be formatted, that is one of the most recognisable signs of logical hard drive failure. It means the operating system can no longer interpret the file system.

2. Partition disappeared

If a partition has disappeared entirely and the drive shows as unallocated space, the data has not necessarily been erased. Rebuilding the partition requires scanning for partition signatures and reconstructing the table, which is a routine task in professional hard drive recovery service work.

3. Slow file operations

If the system becomes extremely slow when accessing the drive, or freezes when opening folders, that suggests the operating system is struggling to read damaged metadata. Running repeated scans in that state can stress the drive further and may expose underlying physical problems. Professional data recovery services are better equipped to handle that safely.

4. Drive show as 0 MB

If the drive reports the wrong capacity, shows as 0 MB, or appears with an incorrect model name, the issue may sit in deeper logical layers such as firmware modules or service area structures. Standard consumer software cannot reach those areas, and it’s much better to get professional help.

5. Data is critical

If the data is critical (such as business records, legal documents, research, financial files, or irreplaceable personal material), then professional assistance is usually the safer choice regardless of how simple the problem appears.

6. Data recovery software has failed

If software tools have already failed to recover the data, it usually means the file system damage is beyond what automated tools can handle. Manual reconstruction or advanced analysis is the next step.

Why Choose Stellar for Logically Damaged Hard Drive Recovery

Every month, we handle thousands of logical data loss cases and successfully recover data in the majority of them. Whether it is a corrupted file system, a missing partition, or a firmware-level fault, our teams have seen and resolved it before.

People trust Stellar Data Recovery  because of what we bring to every case:

• Over 30 years of hands-on data recovery experience
• Proprietary software tools built to work across a wide range of logical damage scenarios
• A free initial consultation with a qualified technician so you understand the problem upfront
• 12 Data recovery labs across India for easy access

Conclusion:

Recovering data from a logically damaged hard drive is often possible, as the data usually remains intact but inaccessible due to corrupted file system structures. Acting quickly and avoiding further use of the drive significantly improves recovery chances.

While reliable data recovery software can help in many cases, complex corruption may require expert intervention. Professional Hdd logical data recovery services use advanced techniques to safely reconstruct data without risking further loss.

If your data is critical, choosing a trusted provider like Stellar ensures a secure, accurate, and efficient recovery process—helping you regain access to your valuable files with confidence.

Related Errors You Can Explore

You can also read about common hard drive errors and their solutions:

• SMART Hard Disk Error 301
• Hard Disk 3F0 HP Error
• External Hard Disk I/O Device Error
• Hard Disk Error 3F1
• Disk Boot Failure – Insert System Disk
• Cyclic Redundancy Check Error
• Boot Device Missing or Boot Failed Error

FAQs

1. Can data be recovered from a logically damaged hard drive?

Yes. In many cases you can recover data from a logically damaged hard drive because the hardware is still functioning. The problem typically lies in corrupted file system structures, partition tables, or metadata.

2. What causes logical hard drive failure?

Logical hard drive failure happens when the file system, partition table, or boot sector becomes corrupted. Common causes include power failures, system crashes, malware, accidental formatting, and improper shutdowns during write operations.

3. How does professional hard disk data recovery work?

Professional hard disk data recovery starts with creating a sector-by-sector image of the damaged drive. At Stellar, specialists then analyse the copied data to rebuild partitions, repair file system structures, and extract files without risking further damage to the original disk.

4. Can I recover data from a hard drive that is not detecting?

Sometimes. If the issue is logical corruption rather than hardware failure, Stellar technicians may still access the drive using specialised recovery tools. If the disk is completely undetected, professional data recovery services like Stellar are usually required.

5. When should I stop trying DIY recovery tools?

If scans freeze, files recover as corrupted, or the drive slows down during attempts, stop. Continued scanning may overwrite recoverable sectors. At that point, contacting Stellar for professional corrupted hard drive recovery is the safer option.
